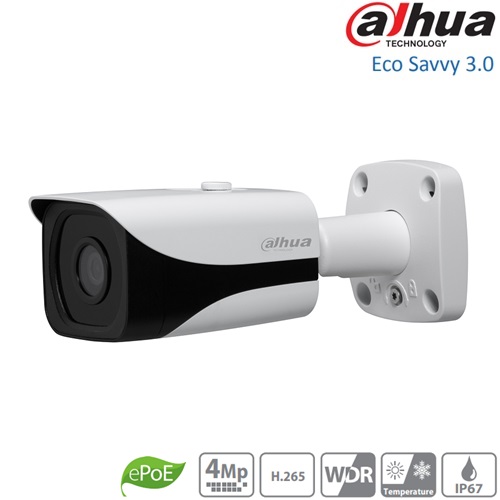

Camera supraveghere video IP, 4MP, IR40m, Dahua IPC-HFW4431E-SE
IPC-HFW4431E-SE este o camera de supraveghere IP bullet de exterior de la Dahua. Aceasta camera este echipata cu un senzor de 1/3" Progressive scan CMOS avand o rezolutie video maxima de 4 Megapixeli (2688x1520 pixeli). Lentila fixa de 3.6mm iti pune la dispozitie un camp vizual de H: 83°, V:45° pentru supravegherea si monitorizarea obiectivelor. BLC (Back Light Compensation) ajuta la vizualizarea detaliilor obiectelor intunecate, iar in acelasi timp poate filtra obiectele foarte luminoase. Camera are grad de protectie IP67 pentru protejarea impotriva factorilor externi (ploaie, praf etc.). Temperatura de functionare porneste de la - 30°C si poate ajunge pana la + 60°C. Compatibil ONVIF, PSIA, CGI. Easy4ip este aplicatia recomandata pentru a vizualiza imagini live de pe telefon. Transmisie date prin ePoE (extended PoE), distanță maximă transmisie date: 800m cu switch PoE dedicat.
Caracteristici camera de supraveghere video Dahua IPC-HFW4431E-SE:
- Senzor imagine: 1/3" 4 Megapixeli Progressive scan CMOS
- Rezolutie: 25fps@4M (2688x1520)
- Functii: WDR (120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
- Compresie H.265/ H.264
- Lentila: fixa 3.6mm (6mm optional)
- Functii inteligente: IVS
- Proiector IR: distanta maxima 40m
- Stocare: Micro SD 128GB,
- Standard protectie: IP67,
- Alimentare: DC12V, PoE (802.3af)
- ePoE (extended PoE), distanta maxima transmisie date: 800m cu switch PoE dedicat.
Specificatii tehnice camera supraveghere video IP Dahua IPC-HFW4431E-SE:
| Senzor | 1/3" 4 Megapixeli progressive scan CMOS | |
| Pixeli efectivi | 2688(H)x1520(V) | |
| RAM/ ROM | 512MB/ 32MB | |
| Sistem scanare | Progresiv | |
| Iluminare minima | 0.06Lux/ F1.6 (Color, 1/3s, 30IRE) 0.4Lux/ F1.6 (Color, 1/30s, 30IRE) 0 Lux/ F2.0 IR pornit |
|
| Viteza Shutter Electronic | Auto/ Manual, 1/3 ~ 1/100.000s | |
| Raport S/N | >50dB | |
| Day/Night | Auto (ICR)/ Color/ A/N | |
| Gain Control | Auto/ Manual | |
| White Balance | Auto/ Zi însorita/ Noapte/ Exterior/ Manual | |
| Backlight Compensation | BLC/ HLC/ WDR (120dB) | |
| Noise Reduction | 3D DNR | |
| Zone private | Pana la 4 zone dreptunghiulare | |
| Zoom digital | 16X | |
| Region of Interest (ROI) | On/ Off, 4 zone | |
| Detectie de Miscare | On/ Off, 4 zone | |
| Distanta maxima IR | 2 LEDuri IR, maxim 40m | |
| Tip lentila | Fixa, incorporata | |
| Distanta focala | 3.6mm (6mm optional) | |
| Unghi vizualizare | H: 83° (55°), V: 45° (31°) | |
| Diafragma | F1.6 | |
| Control focus | Fix | |
| DORI | ||
| Detectare | 3.6mm: 80m 6mm: 120m |
|
| Observare | 3.6mm: 32m 6mm: 48m |
|
| Recunoaștere | 3.6mm: 16m 6mm: 24m |
|
| Identificare | 3.6mm: 8m 6mm: 12m |
|
| Functii inteligente | ||
| IVS | Tripwire Detectie intrusi Detectie obiect abandonat/ lipsa Detectie faciala |
|
| Video | ||
| Compresie | H.265+/ H.265/ H.264+/ H.264 | |
| Capacitate streaming | 3 streamuri | |
| Rezolutie | 4M(2688x1520)/ 3M(2304x1296)/ 1080P(1920x1080)/ 1.3M(1280x960)/ 720P(1280x720)/ D1(704x576)/ VGA(640x480)/ CIF(352x288) | |
| FPS | Main Stream: 4M (1 ~ 25fps) Sub Stream: D1 (1 ~ 25fps) Extra Stream: 720P (1 ~ 25fps) |
|
| Control Bit Rate | CBR/ VBR | |
| Bit Rate | H.264: 24K ~ 10240Kbps H.265: 14K ~ 9984Kbps |
|
| Retea | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Protocol | HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP | |
| Compatibilitate | ONVIF, PSIA, CGI | |
| Metoda streaming | Unicast/ Multicast | |
| Numar utilizatori | 10/ 20 utilizatori | |
| Stocare | NAS PC local Card Micro SD 128GB |
|
| Smart Phone | iOS, Android | |
| Software management | Smart PSS, DSS, Easy4ip | |
| Slot memorie | Micro SD, maxim 128GB | |
| Alimentare | DC12V, PoE (802.3af) | |
| Consum | <6W | |
| Mediu functionare | -30°C ~ 60°C, umiditate relativa <95% | |
| Standard protectie | IP67 | |
| Dimensiuni | 180mm x 70mm x 70mm | |
| Greutate | 0.41Kg | |
| Carcasă | Metal | |
| Transmisie date ePoE | ||
| Distanta | Viteza | |
| 800m 300m |
10Mbps 100Mbps |
|
Disponibilitate:
3-5 zile
