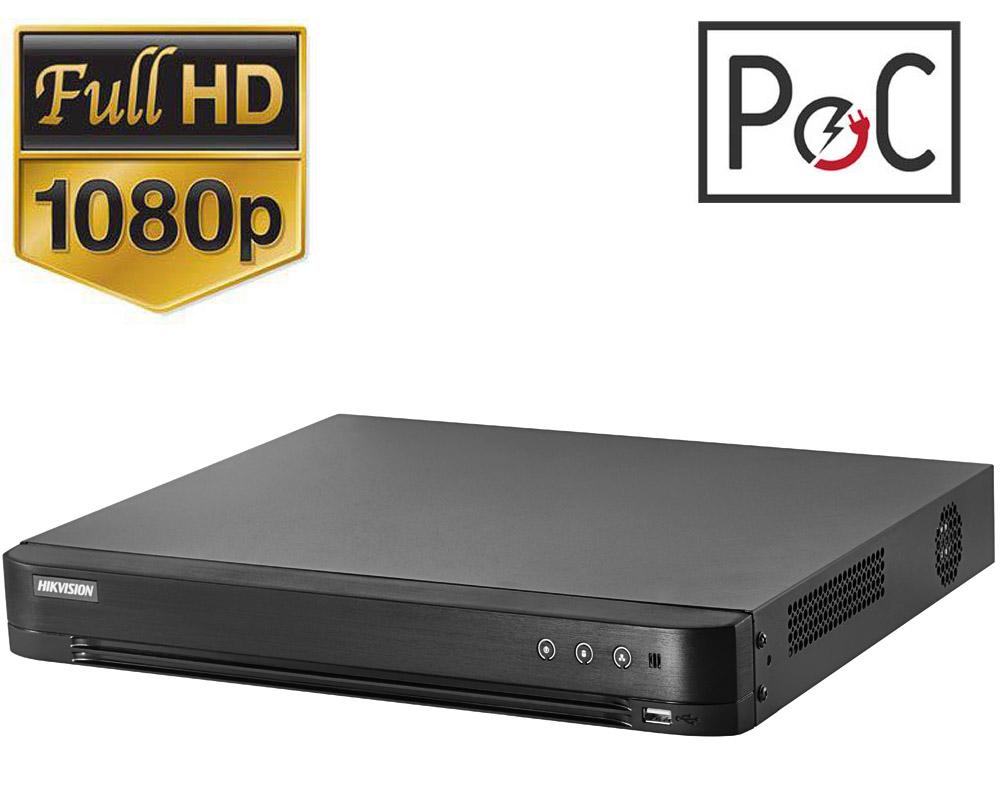

DVR 16 canale, Turbo HD, 4MP, PoC, Hikvision DS-7216HQHI-K2-P
Hikvision DS-7216HQHI-K2-P este un DVR Turbo HD Hikvision hibrid de 16 canale ce permite integrarea camerelor de supraveghere AHD, HDCVI, HD-TVI si CVBS. DVR-ul marca Hikvision DS-7216HQHI-K2-P permite alimentarea a 16 camere de supraveghere cu PoC (Power over Coaxial) pe o distanta de maxim 200m. Capacitatea de stocare a DVR-ului Hikvision DS-7216HQHI-K2-P este de 8TB avand 2 porturi de conectarea HDD de tip SATA. Suporta vizualizarea camerelor de supraveghere atat local cat si la distanta prin Internet de pe PC, Smartphone folosind aplicatiile dedicate (iVMS-4500).
Specificatii tehnice DVR Hikvision DS-7216HQHI-K2-P :
| Audio/Video | |
|---|---|
| Tehnologii suportate: | HDTVI/ HDCVI / CVBS / AHD |
| Intrari video analogice: | 16x canale |
| Intrari video IP: | 2x canal, rezolutie pana la 4 Mp |
| Intrare PoC: | Suporta camere Hikvision PoC |
| Iesiri video: | 1x HDMI, 1x VGA |
| Rezolutie redare: |
VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 HDMI: 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Intrari/Iesiri Audio: | 1/1 RCA |
| Comunicare bidirectionala: | 1x canal RCA (Utilizand primul canal de intrare audio) |
| Inregistrare | |
| Rezolutie inregistrare: | 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF |
| Cadre/Secunda: |
Main Stream: 4MP stream:4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) 3MP stream: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps 1080p stream: 1080p@15fps; 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) 720p stream: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) |
| Compresie video: | H.265+/H.265/H.264+/H.264 |
| Compresie audio: | G.711u |
| Retea | |
| Interfata: | 1x Port RJ-45 (10/100M1000M) |
| Protocol retea: | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Utilizatori simultani: | 128 |
| Stocare | |
| HDD: | 2x port SATA, pana la 8TB (nu este inclus) |
| Interfete auxiliare | |
| USB: | 2x porturi USB (1 USB 2.0 , 1 USB 3.0) |
| RS485: | 1x Port, pentru Control PTZ |
| Functii Speciale | |
| Mod Backup: | USB, Retea |
| Caracteristici generale | |
| Temperatura de functionare: | de la - 10 pana la +55 grade Celsius |
| Alimentare: | 48 VDC |
| Consum: | 40W |
| Dimensiune: | 380 x 320 x 48 mm |
| Greutate: | 2 kg |
