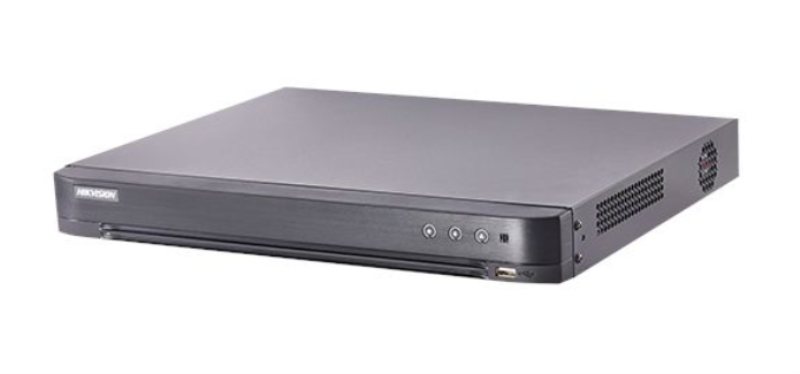

DVR AcuSense cu 16 canale video marca Hikvision iDS-7216HQHI-M1-S, inregistrare video de pana la 4 MP.

Analiza video (VCA): Detectie om/masina (4 canale) detectie faciala (1 canal) trecere linie intrus in perimetru.

Camere suportate: HDTVI AHD CVI 4MP/ 3MP/ 1080P/ 720P Analog + 2 ch. IP max 4MP;

Hikvision iDS-7216HQHI-M1-S suporta 1 HDD SATA cu capacitate pana la 10 TB.

Specificatii tehnice Hikvision iDS-7216HQHI-M1-S

Recording

• Encoding ResolutionMain stream: When 1080p lite mode not enabled: For 4 MP stream access: 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
• Video Bit Rate32 Kbps to 6 Mbps
• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Dual StreamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bit Rate64 Kbps

Video And Audio

• Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Synchronous Playback16-ch
• IP Video Input8-ch (up to 24-ch);Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
• HDTVI Input3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps *: The 3 MP signal input is only available for channel 1/2 of iDS-7208HQHI-M2/S, and for channel 1/2/3/4 of iDS-7216HQHI-M2/S.
• HDCVI Input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• CVBS InputPAL/NTSC
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Analog Video Input16-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• AHD Input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• HDMI/VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI/VGA simultaneous output

Network

• Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Remote Connections128
• Network Interface1,RJ45 10M/100M/1000M self-adaptive Ethernet interface

Auxiliary Interface

• CapacityUp to 10 TB capacity for each disk
• Serial InterfaceRS-485 (half-duplex)
• USB Interface1 × USB 2.0； 1 × USB 3.0
• Alarm In/OutN/A
• SATA1 SATA interface

General

• Consumption(Without HDD)≤ 24 W
• Working Humidity≤ 24 W
• Power Supply12 VDC
• Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
• Dimensions(W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
• Weights (Without HDD)≤ 2 kg (4.4 lb)
