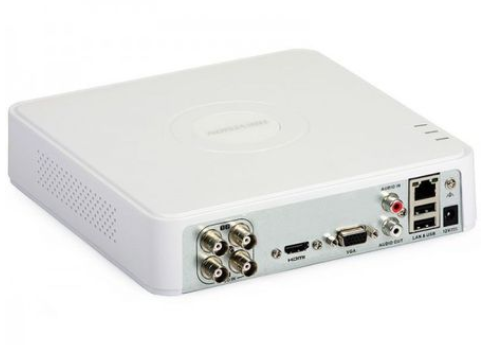

DVR Turbo HD 4 canale video 1080P, Hikvision DS-7104HUHI-K1(S)

DVR Turbo HD 4 canale video 1080P, Hikvision DS-7104HUHI-K1(S)

DVR Turbo HD cu 4 canale video Hikvision DS-7104HUHI-K1(S) are o rezolutie de inregistrare de pana la 5 MP (HDTVI) sau 1920 x 1080 pixeli (AHD/ HDCVI) si reda imaginile la aceeasi rezolutie.

Hikvision DS-7104HUHI-K1(S) suporta 1 HDD SATA cu capacitate pana la 6TB.

Temperatura de functionare porneste de la - 10 grade Celsius si poate ajunge pana la + 55 grade Celsius.

Hikvision DS-7104HUHI-K1(S)  suporta camere : HDTVI, AHD,CVI  5MP /4MP /3MP /1080P/720P; Analog + 2 ch. IP max 5MP;

Specificatii tehnice DVR Turbo HD Hikvision DS-7104HUHI-K1(S)

Recording

• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
• Frame RateMain stream: ,8MP@8fps/5MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF/CIF@25fps (P)/30fps (N)
• Video Bit Rate32 Kbps to 10 Mbps
• Dual StreamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bit Rate64 Kbps

Video And Audio

• IP Video Input4-ch (up to 8-ch) Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• AHD Input5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input4 MP, 1080p25, 1080p30, 720p25, 720p30
• CVBS InputPAL/NTSC
• Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous Playback4-ch
• HDTVI Input8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
• VGA/HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Network

• Remote Connections32
• Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface
• Network Bandwidth32Mbps

Auxiliary Interface

• SATA1 SATA interface
• CapacityUp to 6 TB capacity for each disk
• Alarm In/OutN/A
• USB Interface2 × USB 2.0

General

• Power Supply12 VDC
• Consumption (Without HDD)≤ 15 W
• Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity10% to 90%
• Dimensions (W × D × H)200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
• Weights (Without HDD)≤ 1.16 kg (2.6 lb)
