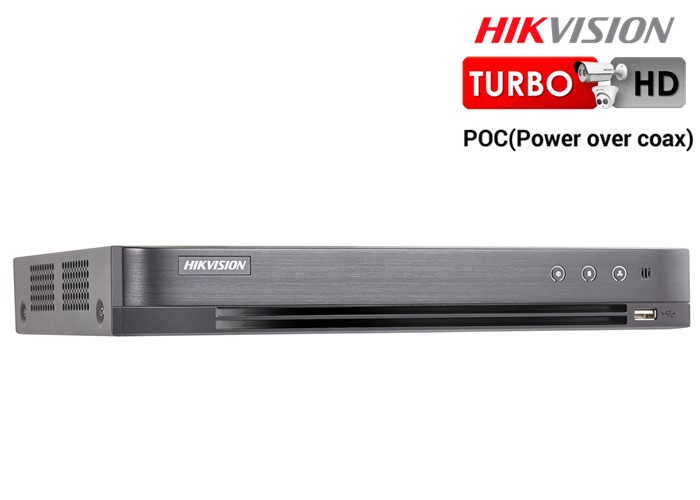

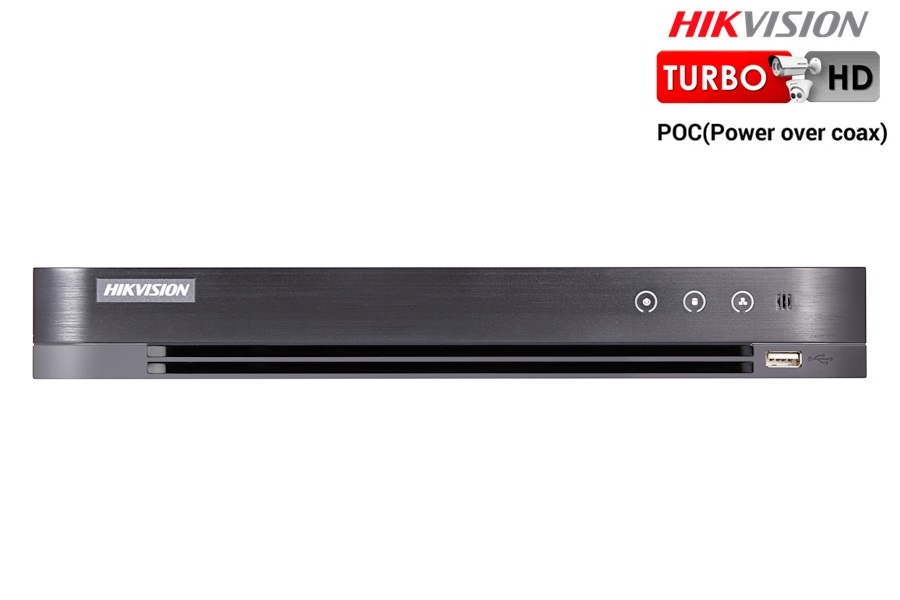

DVR Turbo HD 4 canale video 1080P, PoC, Hikvision DS-7204HQHI-K1-P
DVR Turbo HD cu 4 canale video Hikvision DS-7204HQHI-K1-P, inregistrare camere de supraveghere video Turbo HD la rezolutie maxima de 2MP Full HD ( 1080P ), AHD, HDCVI si camere analogice 960H.
Camerele de supraveghere video pot fi conectate la inregistratorul video DVR cu cablu coxial pe o distanta de pana la 500metri folosind mufe BNC cu infiletare/compresie dar si prin cablu FTP/UTP folosind videobalun-uri.
DVR-ul Hikvision DS-7204HQHI-K1-P functioneaza in regim tribrid: inregistreaza simultan camere de supraveghere video analogice, Turbo HD, camere cu porotocol AHD si HDCVI.
DVR-ul Hikvision DS-7204HQHI-K1-P suporta 1 HDD SATA cu capacitate pana la 6TB .
Rezolutie monitor Full HD 1080P prin iesirea VGA si HDMI.
Hikvision DS-7204HQHI-K1-P dispune de tehnologia Power over Coax (PoC) – atat alimentarea cat si semnalul video sunt transmise prin cablul coaxial, elmininand cablurile necesare pentru alimentarea separata a camerelor rezultand un cost mai redus pentru instalarea unui sistem de supraveghere fapt ce aduce beneficii atat pentru utilizatorul final, cat si pentru instalator care va instala sistemul intr-un timp mai scurt fata de sistemele fara PoC.
Specificatii tehnice DVR Turbo HD Hikvision DS-7204HQHI-K1-P:
| Video/Audio Input | ||
| Audio Input | 4-ch | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |
| Analog and HD-TVI video input | 4-ch,BNC interface (1.0Vp-p, 75 Ω)connection | |
| Supported camera types | Support HDTVI input: 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 Note: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1-P, channel 1/2 of DS-7208HQHI-K2-P, and channel 1/2/3/4 of DS-7216HQHI-K2-P.. Support AHD input: 4 MP, 1080p25, 1080p30, 720p25, 720p30 Support CVI input: 1080p25, 1080p30, 720p25, 720p30 Support CVBS input Supports Hikvision PoC camera Note: Do not unplug or plug the PoC camera if it is powered by the external power supply |
|
| IP Video Input | up to 6-ch | |
| Video Input Interface | BNC (1.0 Vp-p, 75Ω) | |
| IP Video Input Resolution | Up to 6 MP resolution | |
| Audio Compression | G.711u | |
| Audio Input Interface | RCA (2.0 Vp-p, 1 kΩ) | |
| Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input) | |
| Video/Audio Input | ||
| CVBS Output |
1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480 |
|
| HDMI/VGA Output |
1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
|
| Recording resolution |
When 1080p Lite mode not enabled: |
|
| Frame Rate | Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p@15fps; 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
|
| Video Bit Rate | 32 Kbps-6 Mbps | |
| Stream Type | Video/Video&Audio | |
| Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) | |
| Audio Output |
1-ch RCA(Linear, 1kΩ) |
|
| Audio Bit Rate | 64kbps | |
| Dual Stream | Support | |
| Synchronous Playback |
4-ch |
|
| Network management | ||
| Remote connections |
32 |
|
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF | |
| Hard Disk Driver | ||
| Interface Type | 1 SATA Interface | |
| Capacity | Up to 10 TB capacity for each disk | |
| External Interface | ||
| Network Interface | 1; 10M / 100M self-adaptive Ethernet interface | |
| USB Interface | 2 USB 2.0 Interfaces | |
| Serial Interface |
1; standard RS-485 serial interface, half-duplex |
|
| General | ||
| Consumption |
≤ 40W(without hard disks) |
|
| Working Temperature | -10 oC to +55 oC (14 oF to 131 oF) | |
| Working Humidity | 10% to 90% | |
| Dimensions | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) | |
| Weight |
≤ 1.16 kg (2.6 lb) |
|
Disponibilitate:
In stoc
Video Recorder
Tip inregistrator
:
Inregistratorul video este elementul central al unui sistem de supraveghere video si are rolul de a prelua imaginile de la camerele de supraveghere video pe care le proceseaza si le stocheaza in memoria interna. Specificatiile inregistratorului video vor dicta parametrii generali ai sistemului de supraveghere video si anume marimea acestuia (numarul maxim de canale video si canale audio), timpul de stocare (numarul si capacitatea maxima a hard disck-urilor HDD), dar si alte functii importante ca: redarea si backup-ul imaginilor, detectia de evenimente, transmisia prin Internet, etc
- DVR
Protocoale acceptate DVR:
- CVI (HDCVI)
- Turbo HD
- AHD
- SD ( Analog)
Numar canale video
:
Numarul de canale video este o specificatie tehnica pentru inregistratoare video de tip DVR standalone care exprima numarul maxim de camere de supraveghere video care se pot conecta la DVR.
Este recomandat sa alegi un DVR dimensionat pentru un numar de porturi video suficient pentru a putea acoperi nevoile de extindere ulterioare ale sistemului de supraveghere.
Nu este obligatoriu ca un DVR cu 8 canale video sa fie echipat cu 8 camere de supraveghere. Poate functiona foarte bine doar cu 6 camere de supraveghere, 2 porturi ramanand libere pentru orice eventualitate.
- 4 canale
Rezolutie inregistrare DVR:
- 1080P ( 1920 x 1080 )
Numar porturi HDD:
- 1 SATA
Numar canale audio:
- 4 canale RCA
