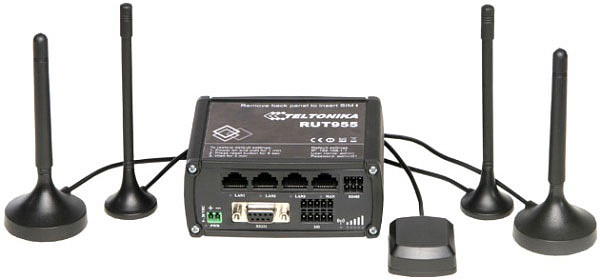

Router LTE/4G RUT955 Wifi Teltonika

Router LTE/4G RUT955 Wifi Teltonika

RUT955 este un router WiFi profesional cu capabilitate 4G, cu ajutorul căruia vă puteţi conecta dispozitivele din casă şi birou la internetul mobil de mare viteză.

În afară de simpla conectivitate la internet, acest router oferă şi alte funcţii utile:

• Failover: Puteţi folosi conexiunea la internetul mobil doar dacă vă pică conexiunea principală
• VPN: Puteţi accesa din Internet reţeaua dvs. internă în mod securizat, folosind protocoalele OpenVPN, IPsec/GRE, PPtP, L2TP
• SMS: Puteţi trimite sau citi SMS-uri cu ajutorul unor comenzi transmise prin protocolul HTTP POST/GET
• Echipamentul este dotat cu ieşiri digitale care pot fi utilizate pentru acţionarea unor relee, pentru diverse aplicaţii de acţionare de la distanţă

Dotări router LTE/4G RUT955 Wifi Teltonika :

• 2× antene Wi-Fi
• 2× antene LTE
• Antenă GPS: nu, se achiziţionează separat

LTE Router LTE/4G RUT955 Wifi Teltonika

• FDD 800(B20)/850(B5)/900(B8)/1800(B3)/1900(B2)/2100(B1)/2600(B7) MHz
• Up to 100 Mbps downlink speed
• Up to 50 Mbps uplink speed
• All bands with diversity

UMTS Router LTE/4G RUT955 Wifi Teltonika

• 850/900/1900/2100 MHz
• HSDPA mode: 21 Mbps (Cat 14) downlink speed
• HSUPA mode: 5.76 Mbps (Cat 6) uplink speed
• UMTS mode: 384 kbps DL, 384 kbps UL
• RX diversity antenna

GSM/GPRS/EDGE Router LTE/4G RUT955 Wifi Teltonika

• 850/900/1800/1900 MHz
• Power class 4 (2 W, 33 dBm) GSM/GPRS 850/900 MHz
• Power class 1 (1 W, 30 dBm) GSM/GPRS 1800/1900 MHz
• Power class E2 (0.5 W, 27 dBm) for EDGE 850/900 MHz
• Power class E2 (0.4 W, 26 dBm) for EDGE 1800/1900 MHz
• GSM: 14.4 kbps DL, 14.4 kbps UL
• GPRS: 107 kbps DL, 85.6 kbps UL (class 33)
• EDGE: 296 kbps DL, 236.8 kbps UL (class 33)

Ethernet Router LTE/4G RUT955 Wifi Teltonika

• IEEE 802.3, IEEE 802.3u standards
• 3 x LAN 10/100 Mbps Ethernet ports
• 1 x WAN 10/100 Mbps Ethernet port
• Supports auto MDI/MDIX

WiFi Router LTE/4G RUT955 Wifi Teltonika

• IEEE 802.11b/g/n WiFi standards
• 2x2 MIMO
• AP and STA modes
• 64/128-bit WEP, WPA, WPA2, WPA&WPA2 encryption methods
• 2.401 – 2.495 GHz WiFi frequency range
• 20 dBm max WiFi TX power
• SSID stealth mode and access control based on MAC address

Hardware Router LTE/4G RUT955 Teltonika

• High performance 560 MHz CPU with 128 Mbytes of DDR2 memory
• 2 pin industrial DC power socket
• Attachable DIN rail adapter
• 4 pin industrial socket for 2/4 wire RS485
• DB9 socket for full-featured RS232
• USB A socket for external devices
• Reset/restore to default button
• 2 x SMA for LTE, 1 x SMA for GPS, 2 x RP-SMA for WiFi antenna connectors
• 4 x Ethernet LEDs, 1 x power LED
• 1 x bi-color connection status LED, 5 x connection strength LEDs
• 10 pin industrial socket for inputs/outputs:
• 0 - 3 V digital input
• 0 - 30 V digital galvanically isolated input
• 0 - 24 V analog input
• 30 V, 250 mA digital open collector output
• 40 V, 4 A SPST relay output

Software Router LTE/4G RUT955 Wifi Teltonika

• OpenVPN, IPsec, GRE, L2TP, PPTP
• Backup WAN
• PPPoE
• Dynamic DNS
• SMS and ping reboot, periodic reboot
• Status, configuration via SMS
• Send/read SMS via HTTP POST/GET
• Monitoring by SNMP, SNMP trap
• System log to record the status of the router
• VRRP
• Web filter
• Wireless hotspot with or without RADIUS server
• SIM card switch controlled by signal, data limit, roaming
• RS232/485 serial console
• RS232/485 over IP
• Input triggers for SMS, e-mail, SIM card, profile, WiFi, reboot, output
• Configuration profiles
• Dual image with safemode firmware
• Firmware update from bootloader via WebUI
• Restore point

Electrical, Mechanical & Environmental

• Dimensions (H x W x D) 80 mm x 106 mm x 46 mm
• Weight 280 g
• Power supply 100 – 240 VAC -> 9 VDC wall adapter
• Input voltage range 9 – 30 VDC
• Power consumption < 7 W
• Operating temperature -40 °C to 75 °C
• Storage temperature -45 °C to 80 °C
• Operating humidity 10 % to 90 % non-condensing
• Storage humidity 5 % to 95 % non-condensing
