Sistem automatizare ferestre si trape de fum KATO 305 RWA

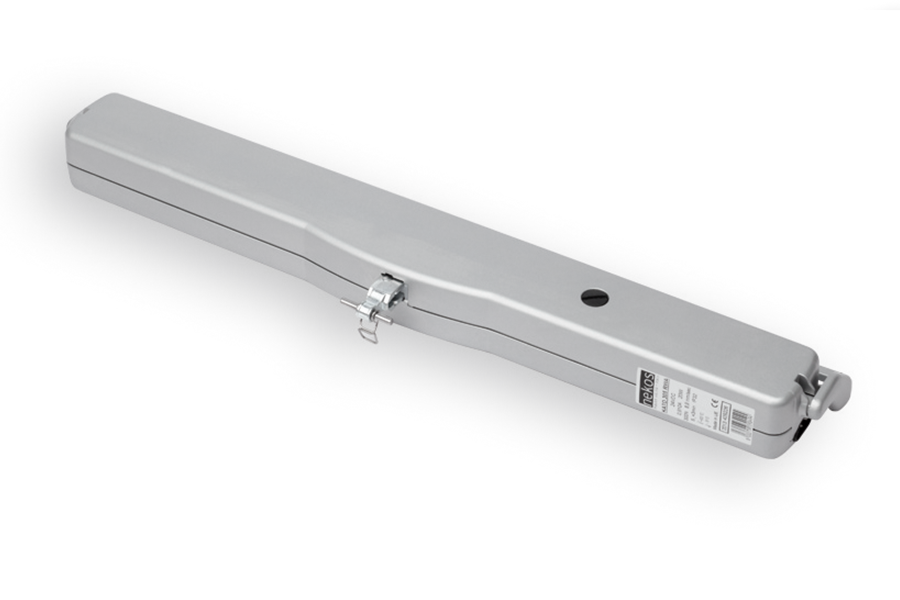

Sistemele de automatizare Kato 305 RWA sunt actuatoare electrice liniare cu lant articulat si carcasa de aluminiu turnat pentru deschiderea ferestrelor si trapelor de fum. Actuatoarele pentru desfumare KATO 305 RWA au motoare puternice alimentate la 24Vcc sau 230Vca si dezvolta o forta de 300N.
Motoarele pentru desfumare Kato 305RWA permit trei trepte de deschidere, functie de Soft Stop and Relax si pot fi conectate in paralel pentru actionarea deschiderilor de dimensiuni mari sau asigurarea unei bune etanseitati pe lungimi mari de deschidere.
Disponibil in doua nuante: alb si negru.
Certificari KATO 305 RWA
EN 12101-2:2003-09
Classification of B 300 with certificate No. 13-000921 at the IFT testing institute of Rosenheim in year 2013
Aplicatii: automatizare ferestre pt evacuare fum si caldura
Specificatii tehnice KATO 305 RWA:
| MODEL |
230V |
RWA 24V |
| Push and pull force |
300 N |
300 N |
| Strokes |
200, 300, 500 mm |
200, 300, 500 mm |
| “Syncro” Synchronization |
NO |
NO |
| Power supply voltage |
110 ÷ 230 VAC 50/60 Hz |
24V = (DC) |
| Current absorbed at nominal load |
0,160 A |
0,910 A |
| Power absorbed at nominal load |
~36 W |
~20 W |
| No-load speed |
7,2 mm/s |
8,9 mm/s |
| No-load stroke time (500mm) |
70 s |
56 s |
| Double electrical insulation |
YES |
L.V. |
| Service type |
S2 of 3 min |
S2 of 3 min |
| Operating temperature |
-5°C ÷ +65°C |
-5°C ÷ +65°C |
| Degree of protection for electrical devices |
IP32 |
IP32 |
| Soft stop |
YES |
YES |
| Relax function |
YES |
YES |
| Frame rebated overlap self-learning |
Position self-determination |
Position self-determination |
| Connection in parallel |
YES (max 30 actuators) |
YES (max 30 actuators) |
| Power supply cable length |
2 m |
2 m |
| Opening stroke-end setting |
Electronic dip-switch setting |
Electronic dip-switch setting |
| Closing stroke-end setting |
At absorption of power |
At absorption of power |
| Protection on overload |
At absorption of power |
At absorption of power |
| Dimensions |
456 x 60 x 43 mm |
456 x 60 x 43 mm |
| Weight |
1,43 Kg |
1,43 Kg |
Producator NEKOS Italia.
Manual KATO 305 RWA (fisa_kato305-RWA.pdf, 564 Kb) [Download]
